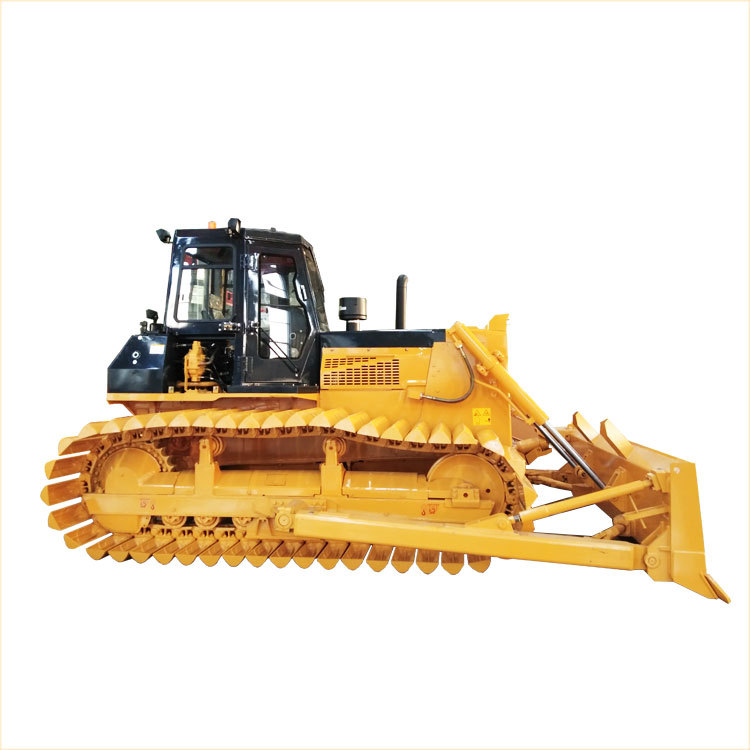

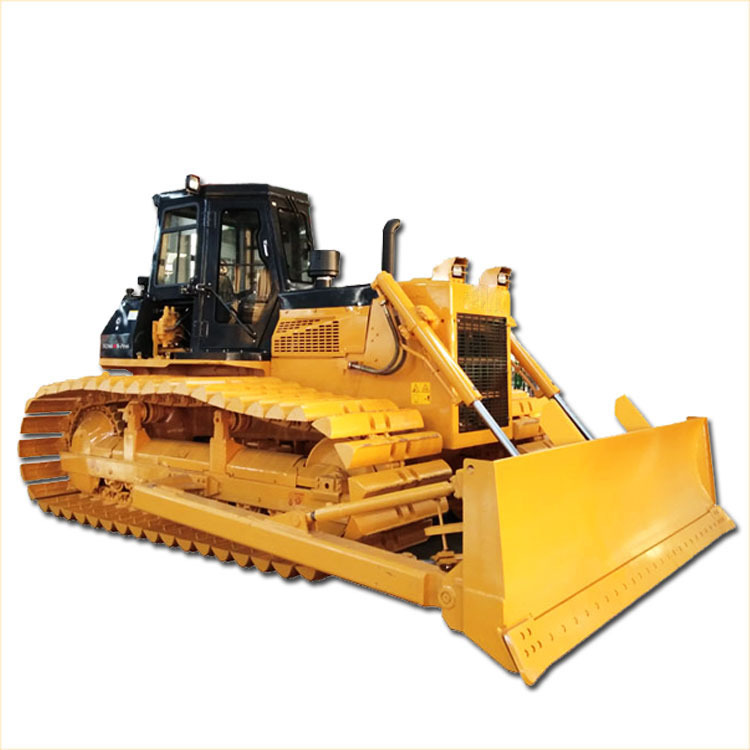

Extended Mechanical Super Wetland Bulldozer

SPECIFICATION

Product Features

1.HD16MS-P lengthened bulldozer adopts lengthened trolley, with advanced and reasonable structure, flexible operation of working device, which can adapt to more severe operating environment and is convenient for maintenance.
2.Suitable for operation in areas requiring low specific pressure.
3.It is applicable to the pushing, excavation, backfilling of earthwork and other bulk materials on roads, railways, mines, airports, etc. It is an indispensable mechanical equipment for building construction and water conservancy construction of national defense projects, mine construction, urban and rural roads, etc.

Technical Parameters

Overall	Model	HD16MS-P
	Dimension	5256 x 4153 x 3130mm
	Operating weight	18300Kg
Engine	Model	Weichai WP10G178E355
	Type	Water-cooled, in-line, 4-stroke, direct injection
	Number of cylinders	6
	Bore x Stroke	Φ126 x 130mm
	Piston Displacement	9.726L
	Rated power	131kW(178HP) @1850rpm
	Max. Torque	830/1000 - 1200N.m/rpm
	Fuel consumption	214g/kw.h
Transmission	Main clutch type	Wet multi-disc, inertia, brake, hand operation, hydraulic booster
	Transmission	Forced lubrication, hand operation
	Center drive shaft	Spiral bevel gear, single-stage speed reduction
	Steering clutch	Wet multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake
	Steering brake	Wet banding structure, footbrake, hydraulic booster
	Final drive	2-stage speed reduction of spur gear, splash lubrication
Travel speed	Gear	1^st	2^nd	3^rd	4^th	5^th
	Forward	0-2.67km/h	0-3.76km/h	0-5.41km/h	0-7.62km/h	0-11.3km/h
	Reverse	0-3.48km/h	0-4.9km/h	0-7.05km/h	0-9.92km/h
Undercarriage system	Type	Sprayed beam, suspended structure of equalizer
	No. of carrier rollers	4 each side
	No. of track rollers	14 each side
	No. of track shoes	44 each side
	Track shoe type	Assembled triangle
	Width of track shoe	1100(950)mm
	Pitch	203.2mm
	Track gauge	2300mm
	Group pressure	0.027Mpa
Hydraulic system	Max. pressure	14Mpa
	Pump type	Gear pump
	Displacement	227L/min
	Bore of working cylinder	1100mm x 2
Blade	Blade type	Straight-tilt blade
	Blade capacity	3.85m³
	Blade width	4150mm
	Blade height	960mm
	Max. drop below ground	488mm
	Max. tilt adjustment	730mm
