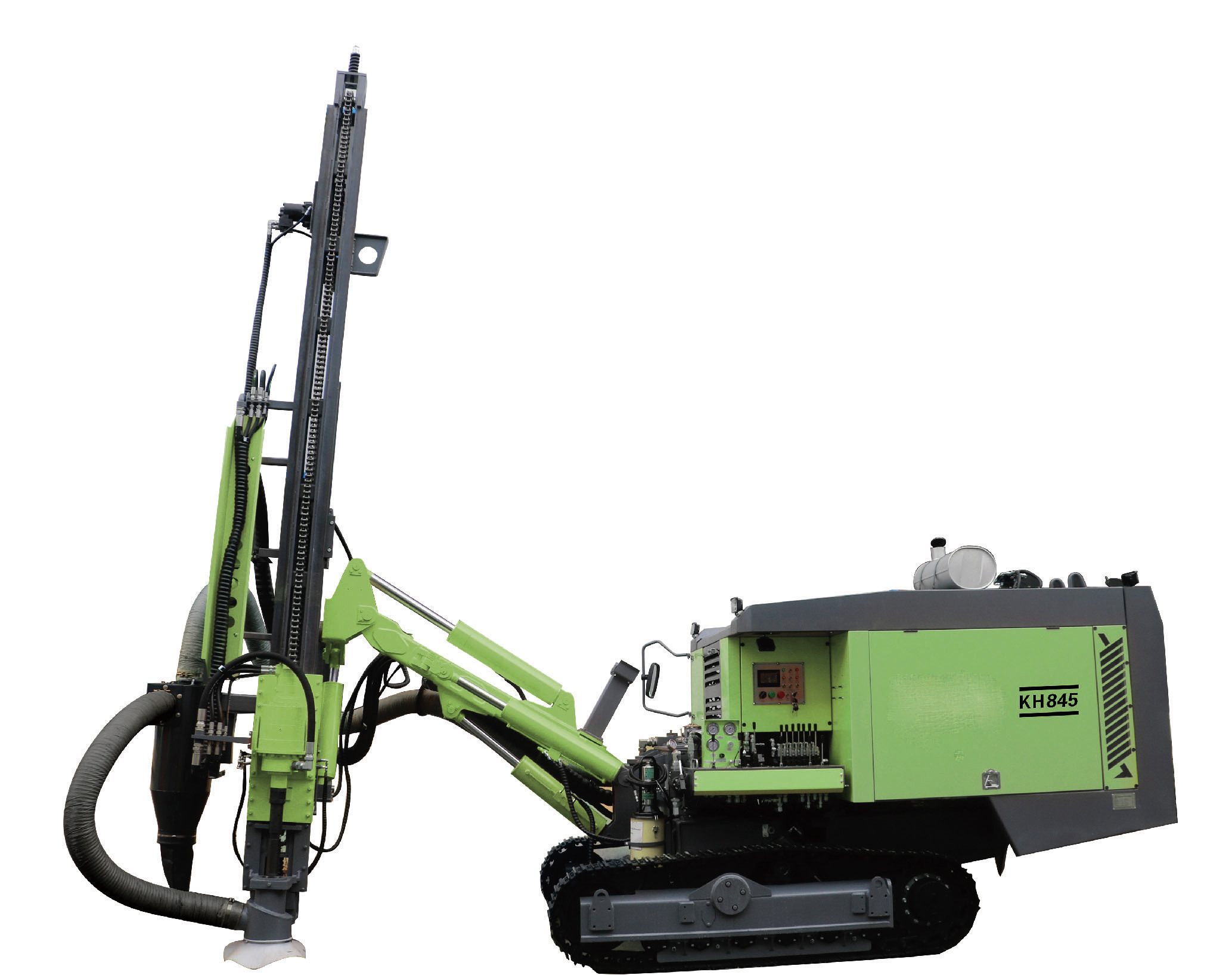

Product Features
1. It is equipped with reinforced steel pusher beam which is designed for the large hole with good stability and efficiency.
2. It is equipped with imported electrical apparatus element with dust prevention and water prevention advantage, which makes it more suitable for the severe mine environment.
3. It is equipped with double-stage screw air compressor which is fuel-efficient.
4. It is equipped with EATON motor and 24A roller chain, which makes it with great propulsion and durable as well as stable.
5. It is equipped with 14-core dust cleaning air filter and large displacement engine, which makes it meet 115-150 hole size requirements.
6. It is equipped with high-quality swivel head, several stable bearings and EATON swinging motor.
7. It is equipped with two-stage air filter, which makes it meet severe mine environment requirements.
Technical Specifications
|
Engine
|
Yuchai 176Kw
|
|
Hole diameter
|
90-130mm
|
|
Depth of economical drilling
|
30m
|
|
Guide
|
Steel Guide
|
|
Rotary torque
|
2700N.M
|
|
Rotary Speed
|
10-120r/min
|
|
Feed beam stroke
|
4150mm
|
|
Tramming speed
|
Max. 3km/h, min. 1.5km/h
|
|
Swinging motor
|
EATON 6K
|
|
Compressor
|
BAOSI double-stage: 15m³,18KG
|
|
Total Weight
|
10,000KG
|
|
Overall dimension
|
8800x2300x2600mm
|
