Product Features

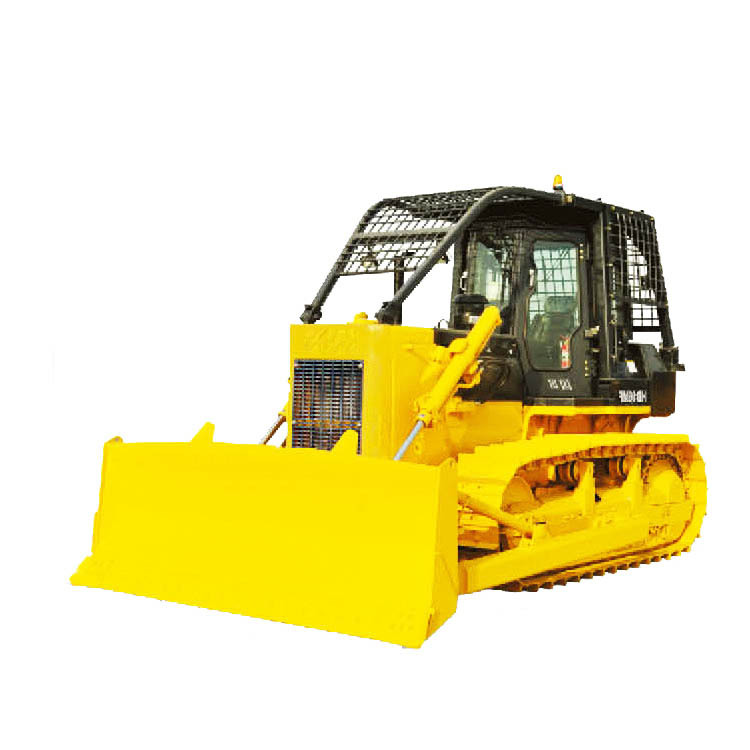

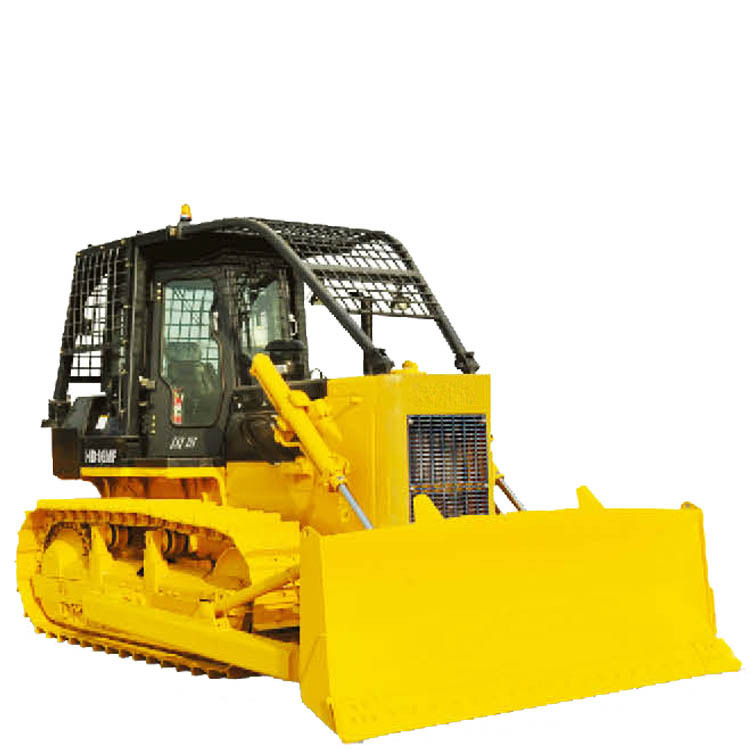

1.HD16MF mechanical forest logging bulldozer is developed according to the needs of forest operation environment. The forward anti roll frame can effectively protect the whole machine, and the operating device is easy and flexible to operate. It is applicable to the construction of forest logging sites.
2.The rear end of the bulldozer is equipped with a winch to complete forest logging and hauling and other operations requiring hauling by means of winch traction. Winches are provided for operations in dangerous areas. If necessary, the bulldozer can rescue itself.
Technical Parameters
|
Model |
HD16MF |
|
Dimension (mm) |
5200×3440×3260 |
|
Weight (T) |
16.8 |
|
Engine model |
WP10G178E355/WD10G178E25 |
|
Power (kw/r/min) |
131/1850 |
|
Minimum fuel consumption g/KW. h |
214 |
|
Grounding length (mm) |
2635 |
|
Ground specific pressure (MPa) |
0.063 |
|
Minimum ground clearance (mm) |
405 |
|
Gradeability (°) |
30 |
|
No. of track shoes (each side) |
39 |
|
Width of Track shoe (mm) |
510(560.610) |
|
Track Gauge (mm) |
1880 |
|
pitch (mm) |
203.2 |
|
No of carrier rollers (each side) |
2 |
|
No. of Track roller (each side) |
7 |
|
Maximum traction force (KN) |
144 |
|
Blade type |
Angle Blade Straight-tilt Blade U Blade |
|
Blade length x height (mm) |
Angle Blade:3970×1040 |
|
Straight-tilt Blade:3440×1150 |
|
|
Blade Capacity( m3 ) |
Straight-tilt Blade:4.5 Angle Blade:4.3 Semi-U-blade:5 U-blade:5 |
|
Blade lift height(mm) |
1095 |
|
Blade depth (mm) |
540 |
|
Maximum inclination of blade (mm) |
400 |
|
Forward (km/h) |
F1:0 〜 2.67 |
|
F2:0 〜 3.76 |
|
|
F3:0 〜 5.41 |
|
|
F4:0 〜 7.62 |
|
|
F5:0 〜 11.13 |
|
|
Reverse (km/h) |
R1:0 〜 3.48 |
|
R2:0 〜 4.90 |
|
|
R3:0 〜 7.05 |
|
|
R3:0 〜 9.92 |
|
|
Coolant capacity (L) |
79 |
|
Fuel tank capacity (L) |
300 |
|
Engine oil capacity (L) |
19 |
