Product Features

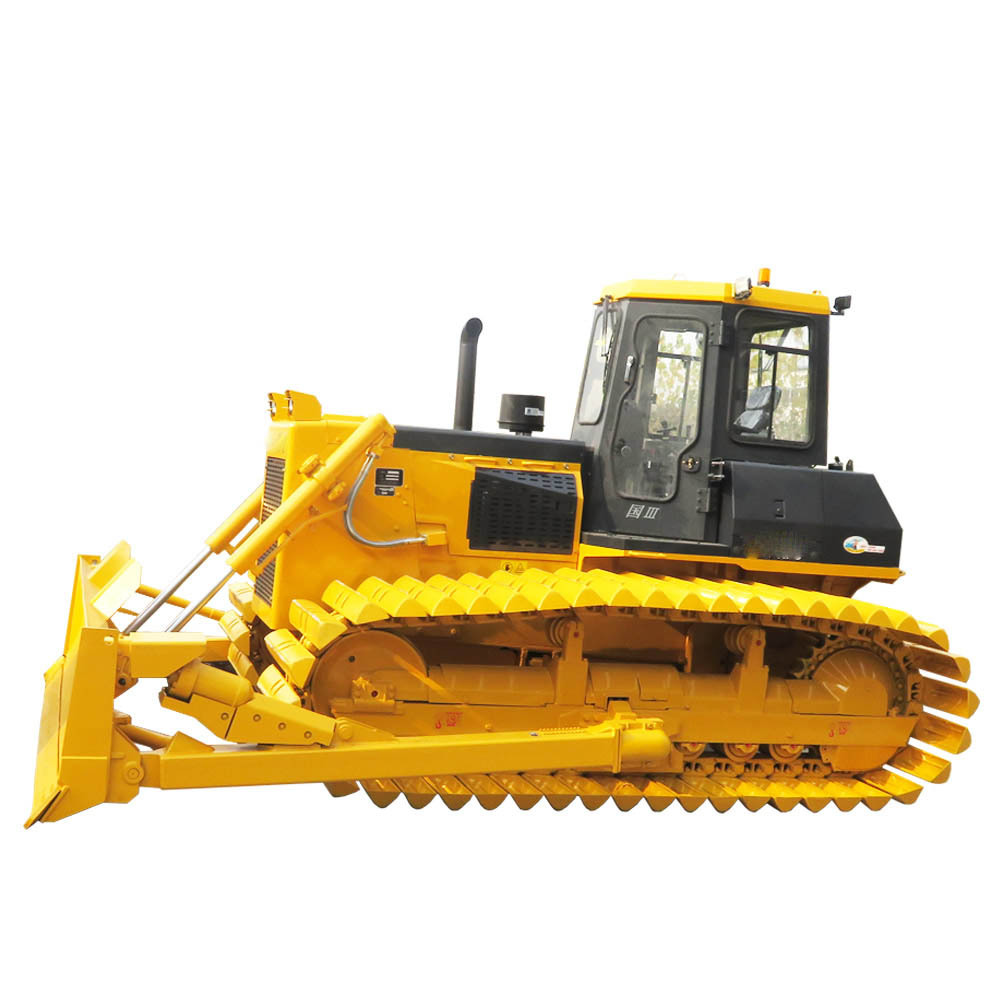

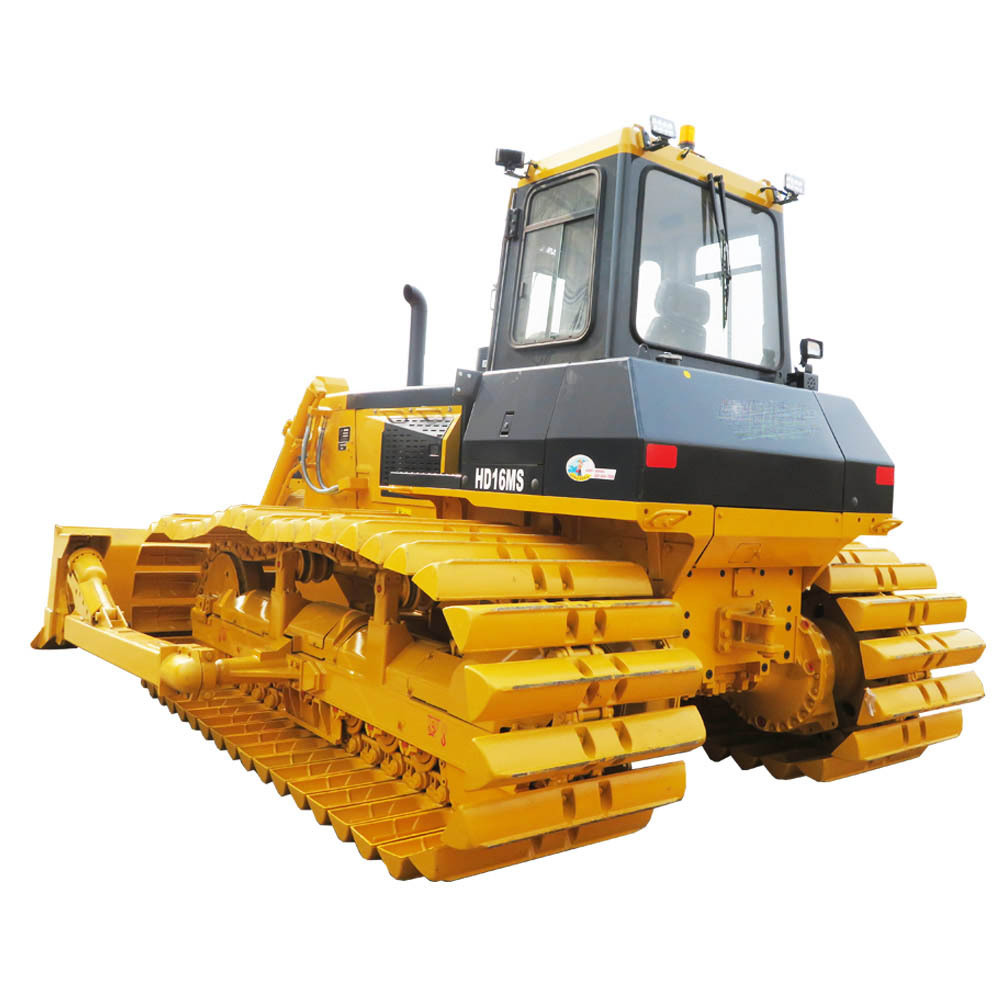

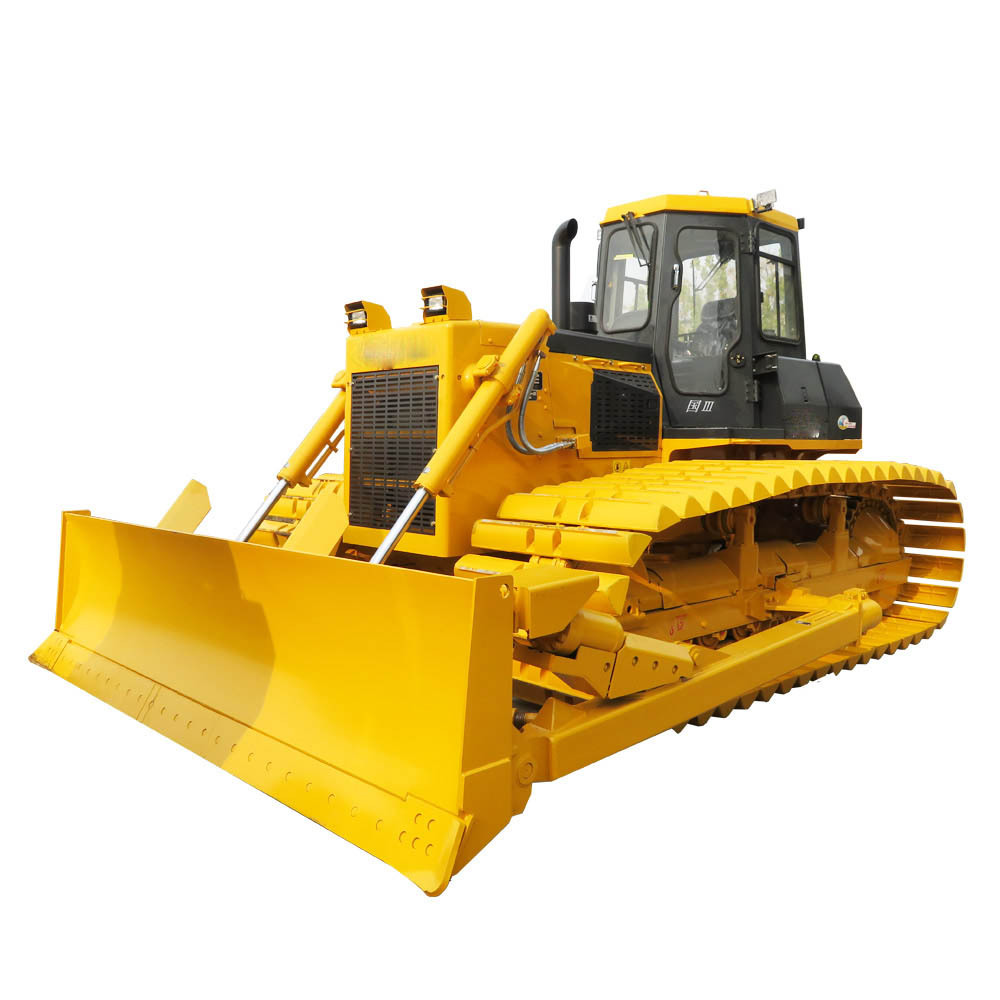

1.HD16MS mechanical super wetland bulldozer is developed according to the needs of construction operation in marsh and wetland conditions, and is an ideal engineering operation machine in soft soil, wetland, mud and marsh areas.
2.The extra wide triangular wetland track shoe can avoid the machine sinking when working in soft soil, wetland, swamp and other soft material workplaces.
Technical Parameters
|
Model |
HD16MS |
|
Dimension (mm) |
5450×4170×3170 |
|
Weight (T) |
18.4 |
|
Engine model |
WP10G178E355/WD10G178E25 |
|
Power (kw/r/min) |
131/1850 |
|
Minimum fuel consumption g/KW. h |
214 |
|
Grounding length (mm) |
3140 |
|
Ground specific pressure (MPa) |
0.027 |
|
Minimum ground clearance (mm) |
492 |
|
Gradeability (°) |
30 |
|
No. of track shoes (each side) |
44 |
|
Width of Track shoe (mm) |
1100(950) |
|
Track Gauge (mm) |
2300 |
|
pitch (mm) |
203.2 |
|
No of carrier rollers (each side) |
2 |
|
No. of Track roller (each side) |
7 |
|
Maximum traction force (KN) |
144 |
|
Blade type |
Straight-tilt Blade |
|
Blade length x height (mm) |
4170×990 |
|
Blade Capacity( m3 ) |
3.8 |
|
Blade lift height(mm) |
1005 |
|
Blade depth (mm) |
495 |
|
Maximum inclination of blade (mm) |
730 |
|
Forward (km/h) |
F1:0 〜 2.67 |
|
F2:0 〜 3.76 |
|
|
F3:0 〜 5.41 |
|
|
F4:0 〜 7.62 |
|
|
F5:0 〜 11.13 |
|
|
Reverse (km/h) |
R1:0 〜 3.48 |
|
R2:0 〜 4.90 |
|
|
R3:0 〜 7.05 |
|
|
R3:0 〜 9.92 |
|
|
Coolant capacity (L) |
79 |
|
Fuel tank capacity (L) |
315 |
|
Engine oil capacity (L) |
19 |
