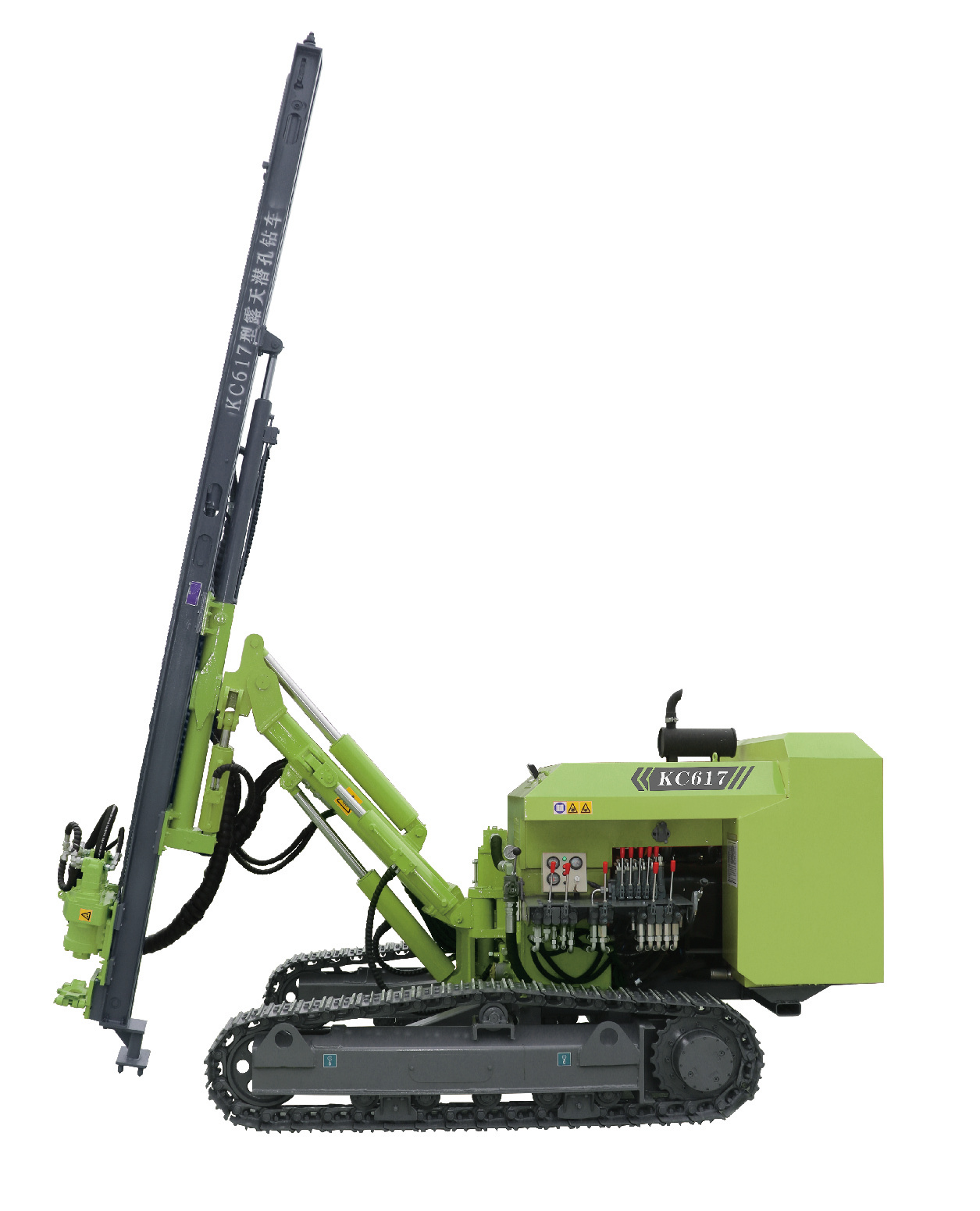

Open-pit Downhole Drill Rig

SPECIFICATION

Product Features

1. It is equipped with user-friendly integrated operation platform, which makes it convenient for operation.

2. It is equipped with well designed housing and nice appearance, which makes it convenient for check and maintenance.

3. It is equipped with efficient travelling system, which makes the towing air compressor climb easily.

4. It is equipped with double motor rotation to increase rotary torque and rotary speed, which makes drill rig works smoothly and safely under any rock stratum.

Technical Specifications

Supporting power	Yuchai
Rated Power	78kW
Drilling diameter	90-100mm
Drilling rod	Φ64mm x 3000mm
Depth of economical drilling	30m
Inches/DHT hammer	3"/4"
Working Pressure	0.8~1.6 Mpa
Air consumption	9~15 m³/min
Rotary torque(Max.)	2400 N.m
Rotary speed	0-150 r/min
Tramming type	Cylinder + chain
Tramming speed	0~2 km/h
Climbing capacity	30 °
Ground clearance	450 mm
Total Weight	4800KG
Outer dimensions/(LxWxH)	5700 x 2100 x 2300 mm
Drilling hardness	f=6~20
Volume of diesel oil tank	70 L
Method of dust collecting	8 Core Dry type
